首页 > 供应产品 > X-I不锈钢复合型紧急冲淋洗眼器
X-I不锈钢复合型紧急冲淋洗眼器
浏览: 839
品牌: 奥普
产品规格: 复合型
单价: 280.00元/套
最小起订量: 1 套
供货总量: 1000 套
发货期限: 自买家付款之日起 3 天内发货
有效期至: 长期有效
最后更新: 2021-06-13 11:11

详细信息
材质: 不锈钢/ 不锈钢烤漆
涂层: 精细抛光/ 高亮度环氧树脂涂层
冲淋器:SUS304 不锈钢入水管(38mm), 球阀开关, 圆条拉杆(直径
6mm)和冲淋头
洗眼器:SUS304 不锈钢入水管(38mm)、球阀开关和洗眼盆
喷头: 洗眼喷头高密度PP,内置不锈钢过滤网,过滤水中杂物
注明: 洗眼停止使用后,管道内积水自动排空,达到防冻目的
复合式紧急冲淋洗眼器
COMBINATION SHOWER & EYE WASH
不锈钢紧急洗眼器
Stainless Steel Emergency Eye Wash
不锈钢紧急洗眼器
Stainless Steel Emergency Eye Wash

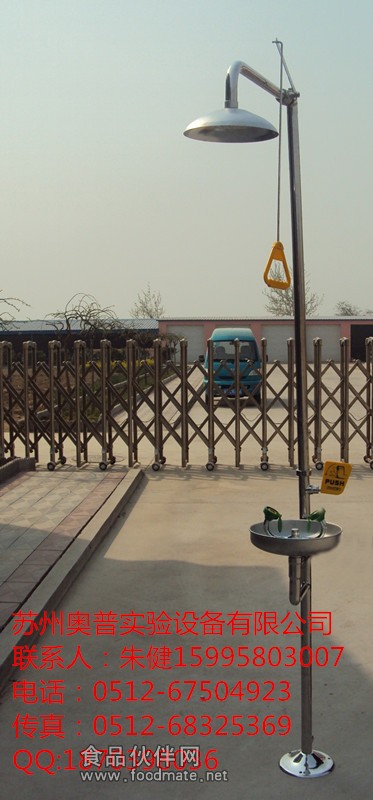

不锈钢紧急冲淋洗眼器
Stainless Steel Emergency
Shower & Eye Wash
Type: stainless steel /Epoxy coating stainless steel
Coating: gloss exquisite polished/high gloss epoxy powder coating
Emergency shower: stainless steel 304 inlet pipe(38mm), stay-open ball
valve switch,pull rod (D6mm)& shower head
Eye wash: stainless steel 304 inlet pipe(38mm), stay-open ball valve
switch &eye wash bowl &dust cap
Eye spray head: chemical resistant PP, built-in stainless steel filter for
impurity clearance
Note:Foot treadle stainless steel available,after washing the eyes, the
pipe of water can empty automatically to achieve preventting frostbite



材质: 冲淋球阀、洗眼阀为SUS304 不锈钢,洗眼盆、洗眼喷头和冲淋头为ABS 材质,
管为镀锌钢管,内壁做防腐处理,管径 42mm
涂层: 特有的涂层有效防护多种化学物质的侵蚀
喷头: 冲淋喷头直径为250mm 的ABS 工程塑料,可提供流量80 升/ 分钟(压力为
0.6MPa)的出水流量。洗眼盆直径为250mm 的ABS 工程塑料。洗眼喷头内装起泡器,
出水经缓压处理呈泡沫状水柱,防止冲伤眼睛,外设防尘盖,使用时可自动被水冲开。
阀门: 冲淋阀门为G3/4 球阀 洗眼阀门为G1/2 球阀
流量: 根据管道压力不同其流量随之变化,在规定的水压范围内,洗眼喷头出水量为
11.5 升/ 分钟
水压: 适用水压0.2MPa-0.6MPa
水源: 常温纯水或符合卫生标准用水
复合式冲淋洗眼器
COMBINATION SHOWER & EYE WASH
SGPW 紧急冲淋洗眼器
SGPW Emergency Shower&Eye Wash
SGPW 紧急洗眼器
SGPW Emergency Eye Wash
Material: Shower ball valve, eye wash valve are the 304 stainless steel , eye wash bowl, eye wash
sprayer heads and shower head are ABS material,the tube is galvanized steel material, inside of the
pipe has done the anticorrosive processing, pipe diameter is 42 mm
Coating: the especial coating can resist chemicals
Sprayer head: the ABS diameter of spray head is 250mm,supply the MAX.outlet water flux 80L/
min,(the pressure is 0.6MPa),The ABS diameter of the eye wash bowl is 250mm.Built-in bubbly
equipment,sofeened water spray for eye protection,the outside have the duct cap,removed
automatically when eye wash is operated
Valve: the valve of the shower is G3/4 ball valve.The valve of the eye wash is G1/2 ball valve
Rate of flow: along with the pipeline pressure the water flux is changed,within the stated water
pressure,the max,outlet flux of eye wash is 11.5L/min.
Water pressure: the applicable water pressure is 0.2MPa-0.6MPa
Source: normal temperature purity water or according with sanitation standard water
Note:After washing the eyes, the pipe of water can empty automatically to achieve preventting
frostbite. Also can add the stainless steel foot treadle to control the switch of washing the eyes.
( 红色脚踏)
SGPW 紧急冲淋洗眼器
SGPW Emergency Shower&Eye Wash((Red foot-treadle))
(黄色)
SGPW 紧急冲淋洗眼器
SGPW Emergency Shower&Eye Wash(Yellow)
紧急冲淋洗眼器- 真正安全专家
Emergency eye wash Real Security Experts
注明: 洗眼停止使用后,管道内积水自动排空,达到防冻目的,可添加不锈钢踏板,控制洗眼开关
